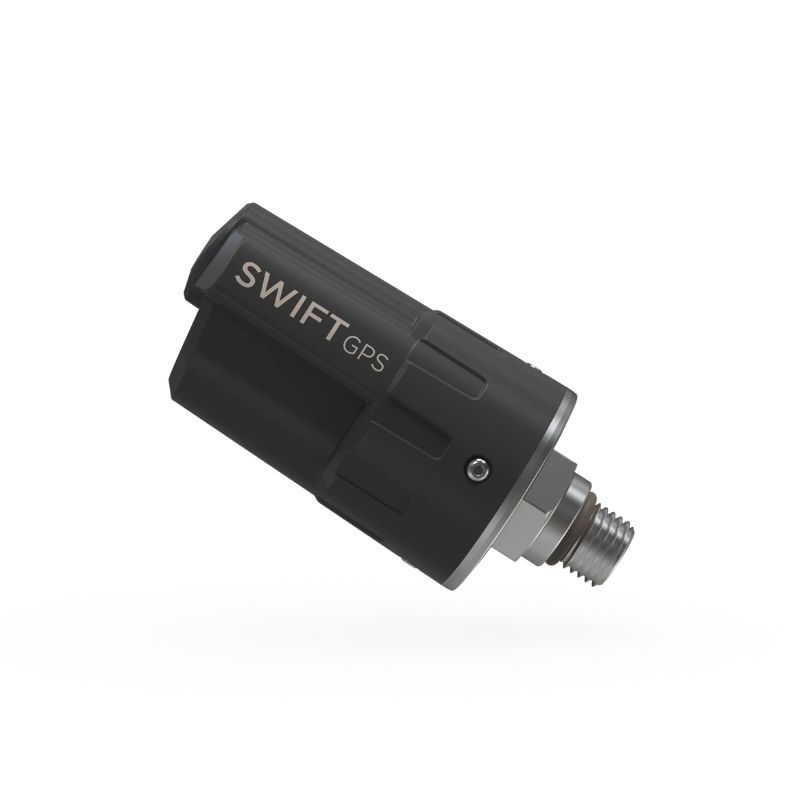

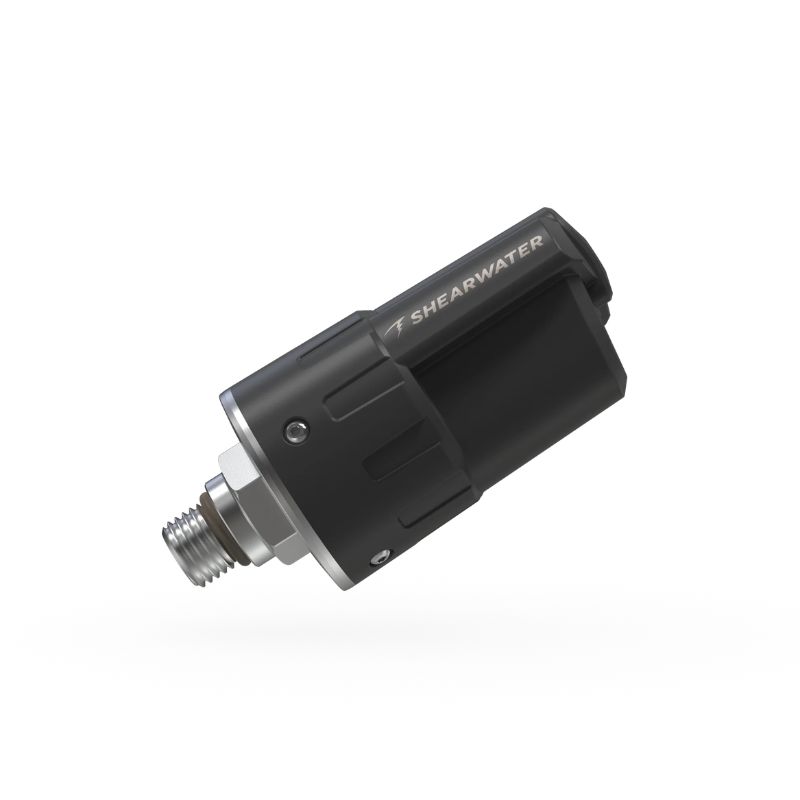

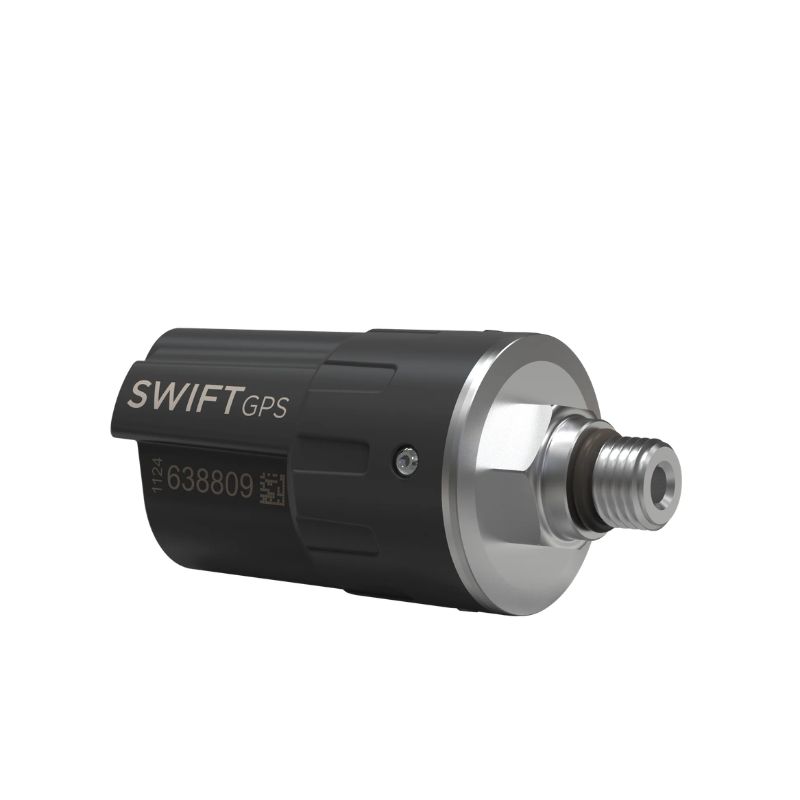

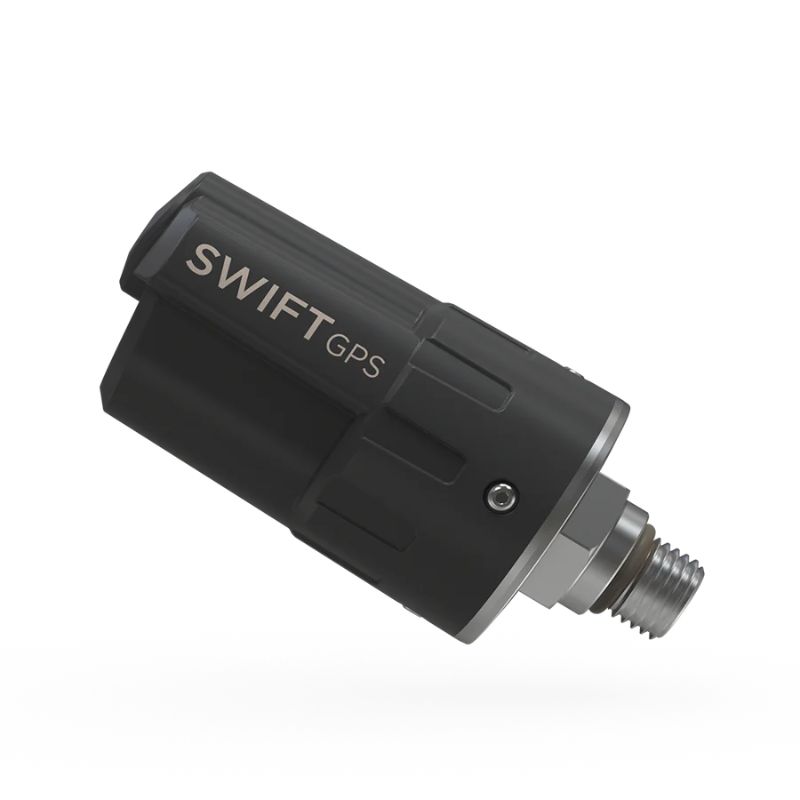

Shearwater Swift GPS Transmitter
Product Description
Upgrade your dive setup with the Shearwater Swift GPS Transmitter lock in your dive site location coordinates automatically on any Shearwater air-integrated dive computer using the Swift GPS. Expand the benefits of air integration by capturing your dive’s entry and exit points, and add precise maps directly to your Dive Shearwater log.
Receive real-time gas pressure data and benefit from accurate gas time remaining calculations to extend your dive time safely. Easily view all dive metrics on your computer display to maximize your adventure and enjoyment underwater.
Shearwater Swift GPS FULL FEATURES
| Category |
Log Details & Features |
| Dive Shearwater Log Displays |
• Your dive location on a map
• A location name (if available)
• Entry and exit coordinates
• A world view of all your dive log locations
|
| Transmitter Configuration |
• Only 1 transmitter needs to be GPS if a user has multiple transmitters. |
| Standard SWIFT Features |
• Advanced collision avoidance system ensures reliability using multiple transmitters
• Randomized transmit interval allows for reliable simultaneous use of multiple Swift transmitters

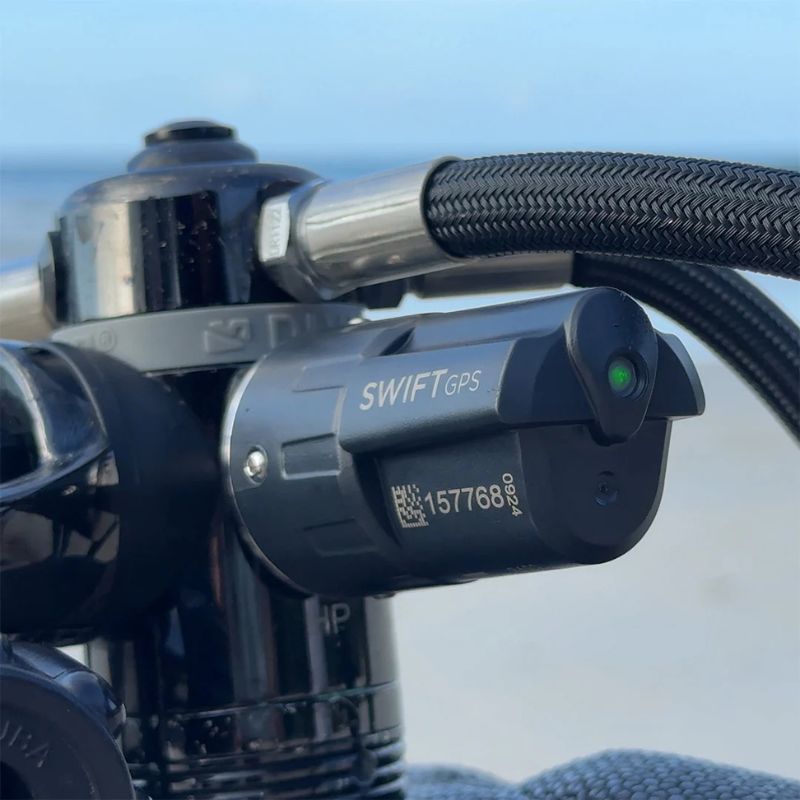

• LED status indicator

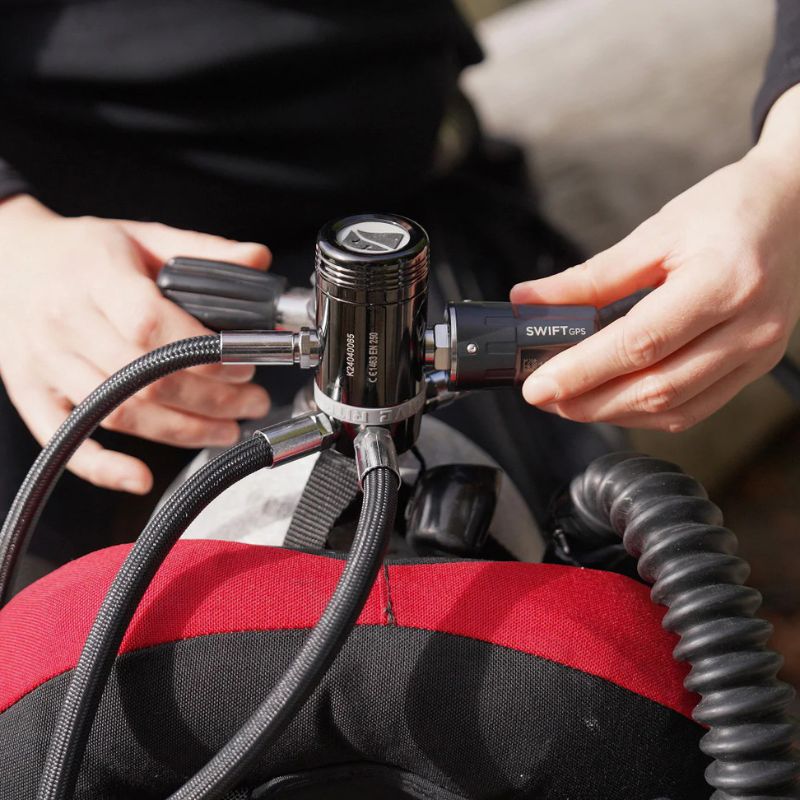

• Easy ‘no tools’ installation and removal on diver’s first stage
• Compatible with all existing air integrated Shearwater dive computers
|
TECHNICAL SPECS
| Category |
Specification |
Details |
| Operating Limits |
Depth Limit |
200 m |
|
Operating Temperature Range |
+4°C to +34°C |
|
Short-Term Temp Range (Hours) |
-10°C to +50°C |
|
Long-Term Storage Temp Range |
+5°C to +20°C |
| Pressure & Ports |
Pressure Port |
7/16″ -20UNF |
|
Rated Air Pressure |
300 bar / 4350 psi |
|
Pressure Reporting Resolution |
0.14 bar / 2 psi |
|
Pressure Reporting Interval |
4.8 – 5.2 seconds |
|
HP Port Proof Pressure |
450 bar / 6525 psi |
|
Accuracy |
5% full scale |
|
Zero Offset |
<3.5 bar / 50 psi |
|
Activation Pressure |
7 bar / 100 psi |
|
De-activation Pressure |
3.5 bar / 50 psi |
| Hardware & O-Rings |
Cover Screws |
1.5mm hex 316SS |
|
Body O-Ring |
24 x 1.5mm |
|
HP Port O-Ring |
AS568-904 75A Viton |
| Dimensions & Weight |
Size |
76mm (L) x 34mm (D) |
|
Weight |
135g |
| Battery |
Battery Type |
CR2 3V Lithium (User replaceable) |
|
Recommended Type |
Panasonic CR2 Industrial Lithium (Ships with device) |
|
Battery Capacity |
Approx. 2.55 Wh |
|
Battery Life |
Up to 100 dive hours (based on 100 one-hour dives with 20 minutes GNSS on-time before/after each dive) OR 2-year storage time |
| GNSS (GPS) |
GNSS Constellations |
GPS L1C/A, Galileo E1B/C, BeiDou B1l |
|
Location Resolution |
2 m |
|
Location Accuracy |
4 m (Condition dependent) |
|
Location Reporting Interval |
4.8 – 5.2 seconds |
